Setting Up the Project

First, we will set up our effect inside the project.

• Creating the effect directories.
• Adding our effect to the FORGE effects list.

Creating the Effect Directories.

1. Open STM32CubeIDE with OSCAR_Workspace as your workspace.

2. Select the project Software_OSCAR_P01A01.

3. Create a directory named MyFirstEffect inside Software_OSCAR_P01A01\DAD_FORGE\Effects:

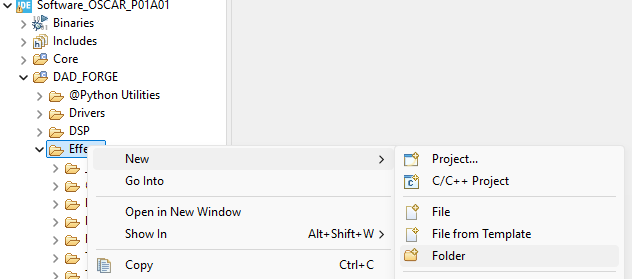

   • Right-click on the Effects folder → New / Folder.

4. Inside MyFirstEffect, create two subdirectories: Inc and Src.

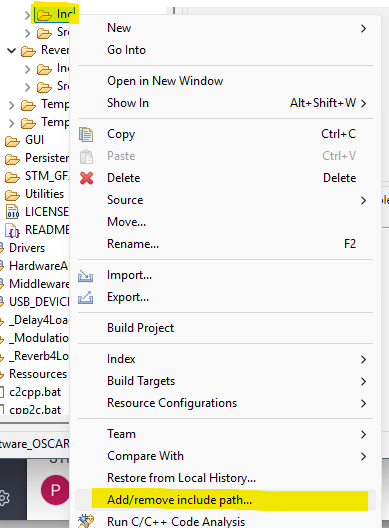

5. Select the Inc directory and add it to the include path:

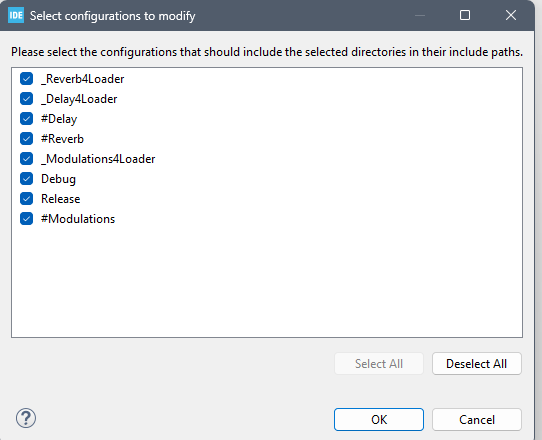

   • Right-click on Inc → Add/Remove Include Path, then check all build configurations.

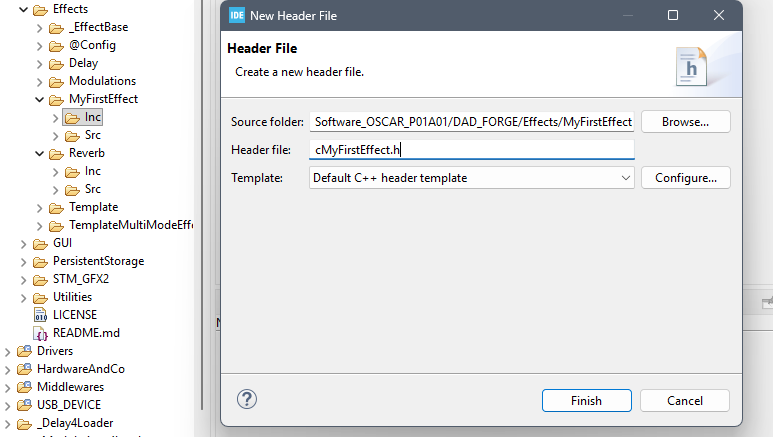

6. Create a new header file cMyFirstEffect.h inside Inc:
   • Right-click on Inc → New / Header File.
7. Create a new source file cMyFirstEffect.cpp inside Src:
   • Right-click on Src → New / Source File.

---

Adding Our Effect to the FORGE Effects List

Open the following file: Software_OSCAR_P01A01\DAD_FORGE\Effects\@Config\EffectsConfig.h

Modify the “EFFECT CONFIGURATION” section by commenting out the line #define TEMPLATE_EFFECT and adding the following line #define MY_FIRST_EFFECT

This tells FORGE to compile our effect.

// ======================= EFFECT CONFIGURATION ===========================
#ifdef DEBUG_RELEASE_EFFECT
//#define DELAY_EFFECT
//#define MODULATIONS_EFFECT
//#define REVERB_EFFECT
//#define TEMPLATE_EFFECT
//#define TEMPLATE_MULTI_MODE_EFFECT
#define MY_FIRST_EFFECT
#endif

In the ‘EFFECT CONFIGURATION CHECK’ section, append ` && !defined(MY_FIRST_EFFECT)` to the condition of the second if statement.

// ====================== EFFECT CONFIGURATION CHECK ======================
// Ensures exactly one effect is selected during compilation.
//

#if defined(DELAY_EFFECT) + defined(MODULATIONS_EFFECT) + defined(REVERB_EFFECT) + defined(TEMPLATE_EFFECT) + defined(TEMPLATE_MULTI_MODE_EFFECT)> 1
#error "ERROR: Multiple effects are defined at the same time! Only one effect must be active."
#endif

#if !defined(DELAY_EFFECT) && !defined(MODULATIONS_EFFECT) && !defined(REVERB_EFFECT) && !defined(TEMPLATE_EFFECT) && !defined(TEMPLATE_MULTI_MODE_EFFECT) && !defined(MY_FIRST_EFFECT)
#error "ERROR: No effect is defined! Please define exactly one of: DELAY_EFFECT, MODULATIONS_EFFECT or REVERB_EFFECT."
#endif

At the end of the file, add the following code to provide FORGE with the information required to run the effect:

// Configuring the First effect
#ifdef MY_FIRST_EFFECT
#include "cMyFirstEffect.h"
#define DECLARE_EFFECT cMyFirstEffect  __Effect
#define EFFECT_NAME "My First Effect"
#define EFFECT_VERSION "Version 1.0"
#define EFFECT_SPLATCH_SCREEN "Template.png"
constexpr uint32_t EFFECT_BUILD = BUILD_ID('F', 'R', 'I', '1');
#endif
