How to Compile Effects

This tutorial explains how to compile effects and load them onto the OSCAR hardware platform.

Prerequisites

You must have the following installed and configured:

• Git and STM32CubeIDE.
• The Software_OSCAR_P01A01 repository cloned, with the workspace properly configured in STM32CubeIDE.

See: How to Create Your Workspace

---

Compiling Effects

1. Open STM32CubeIDE and select the OSCAR_Workspace.
2. We will now compile the Delay effect using a configuration compatible with the Loader.
3. Select the Software_OSCAR_P01_A01 project.

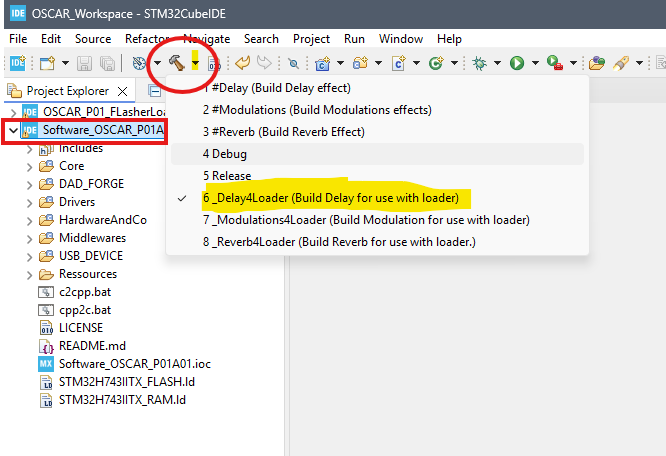

4. In the toolbar, click the small downward arrow located next to the hammer icon (Build/Configure). This will open the list of build configurations.
5. Click on _Delay4Loader in the list.

The Delay effect is now compiling.

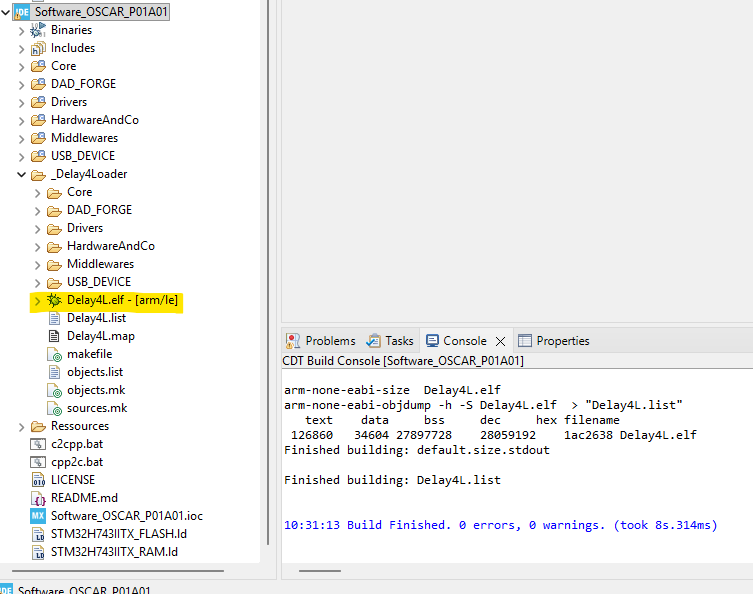

• If the compilation completes successfully, a directory named _Delay4Loader should appear inside your project structure.
• This directory contains the generated executable file: Delay.elf.

---

You can compile the other effects in the same manner using these build configurations:

• _Modulations4Loader
• _Reverb4Loader

Tip: Understanding Build Configurations

• Use configurations starting with #xxx (e.g., #Delay) to generate standalone executables that are stored in the internal flash memory of the STM32H743.
• Configurations ending with 4Loader (e.g., Delay4Loader) produce executables designed for storage in the board’s QSPI flash memory, which are then launched by the bootloader.
• The Debug configuration is used to debug the software directly within the STM32CubeIDE environment.
• The Release configuration produces a standalone executable (similar to the #xxx configurations). The final compiled effect version is determined by the contents of this file: Software_OSCAR_P01A01/DAD_FORGE/Effects/@Config/EffectsConfig.h.
