Parameter Views vvvff
Namespace : DadGUI
Files : ParameterViews.h / ParameterViews.cpp
Directory : DAD_FORGE/GUI/Components
Class : DadGUI::cParameterViews
Class : DadGUI::cParameterNumView
Class : DadGUI::cParameterNumNormalView
Class : DadGUI::cParameterNumLeftRightView
Class : DadGUI::cParameterDiscretView
Description :
The ParameterViews module groups together all graphical components dedicated to displaying and editing parameters in the OSCAR/FORGE interface. It ensures the link between DSP parameters, user encoders and their on-screen visual representation, while offering several types of views adapted to numerical and discrete parameters.
📋 General Description
The ParameterViews module constitutes the presentation layer of parameters within the OSCAR/FORGE framework’s graphical interface. Its role is to ensure the link between DSP parameter objects and their on-screen visual representation.

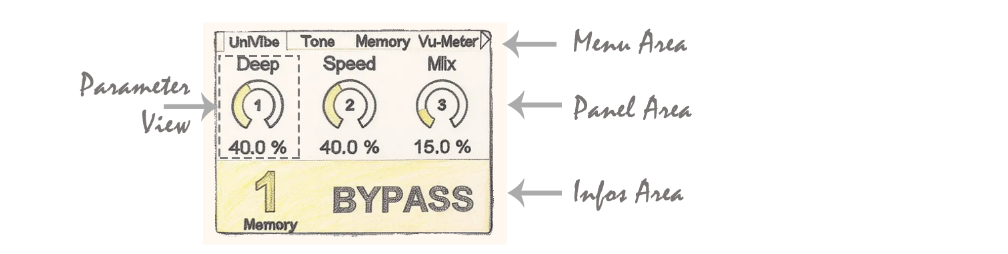

Each view instance is associated with a user parameter and with one of the three parameter zones displayed on the interface.
It is responsible for:
- displaying the parameter name and value;
- graphically representing its state;
- managing interactions with the associated encoder;
- detecting changes coming from the user or other sources (MIDI, preset loading, etc.);
- dynamically updating the display when the value changes.
The system thus allows complete separation of the business logic of parameters from their graphical representation.
Architecture The module is based on an object-oriented architecture based on inheritance.
Each parameter type has its own specialized display class, while sharing a common base provided by the cParameterView base class.
cParameterView (abstract)
├── cParameterNumView (numerical base with units)
│ └── cParameterNumNormalView (standard centered layout)
│ └── cParameterNumLeftRightView (left/right stereo-type layout)
└── cParameterDiscretView (discrete enumerated values)
🔗 External Dependencies
File Inclusions
| Included File | Source | Role |
|---|---|---|
"GUI_Include.h" | DAD_FORGE/GUI/Core/Inc | Global headers for GUI (constant definitions, types, palettes, __GUI) |
"cUIParameter.h" | DAD_FORGE/GUI/Core/Inc | Parameter management class |
Global Variables Used and Driver Objects
| Variable / Object | Type | Source | Role |
|---|---|---|---|
__Encoder1 | DadDrivers::cEncoder* | extern in Drivers | Tactile encoder 1 for parameter zone 1. |
__Encoder2 | DadDrivers::cEncoder* | extern in Drivers | Tactile encoder 2 for parameter zone 2. |
__Encoder3 | DadDrivers::cEncoder* | extern in Drivers | Tactile encoder 3 for parameter zone 3. |
__GUI | cGUI* | extern in GUI/Core | Main GUI interface. Used to access GUI resources (e.g.: fonts) |
__pActivePalette | eColorPalette_t* | extern in GUI/Core | Pointer to the active color palette. Used to draw graphical objects with theme colors. |
